Dock 3

perfect companion in a compact,
beautiful body
pre-order
starting at €109 for limited time
Introducing Dock 3 with wider infrared blasting range, power over ethernet, RS232 support via the configurable 3.5mm ports, voice capabilities and much more. It still charges the remote and blends in with your decor.

key features

Dock 3 can connect to your network via 2.4GHz WiFi supporting 802.11 b/g/n or ethernet, that supports power over ethernet (802.3af). The two 3.5mm jack ports on the back are configurable to send out infrared signals or control compatible RS232 devices.1

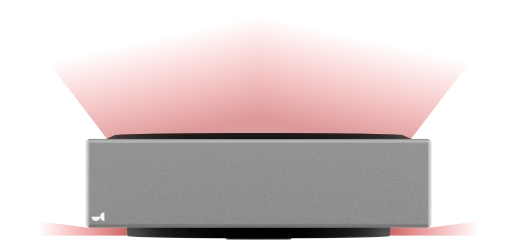

wide IR coverage
IR LED arrays blast IR signals on the top and bottom fo the dock to reach maximum coverage.
IR extender
Dock 3 comes with a new, beautiful yet powerful IR extender.

It blasts IR signals via three powerful LEDs for the best coverage.

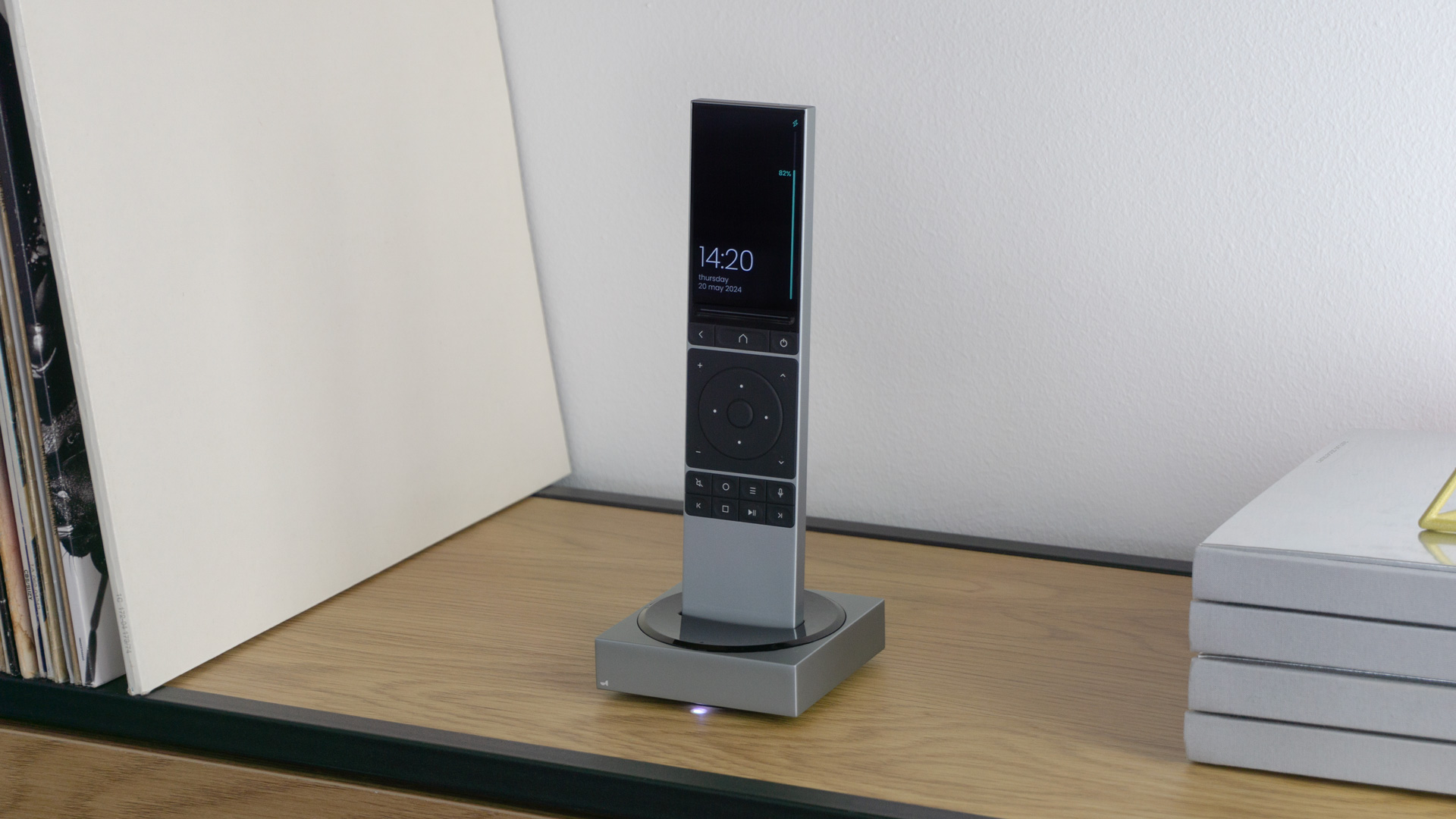

The remote’s perfect companion. Dock 3 not just charges the remote, but it complements the control capabilities of the remote by extending its IR range and adding support for RS232 devices.
how does it work?
status display
Next to the RGB status LED a small OLED display shows important information when required.
action button
Programmable button on the top of the dock. Press to wake up and find the remote or configure it to send a specific IR command.2

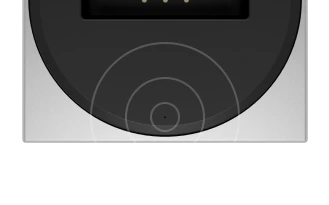

voice and sound
Dock 3 comes with a built-in microphone and a speaker to enable voice functionality. Ideal for a voice satellite.3

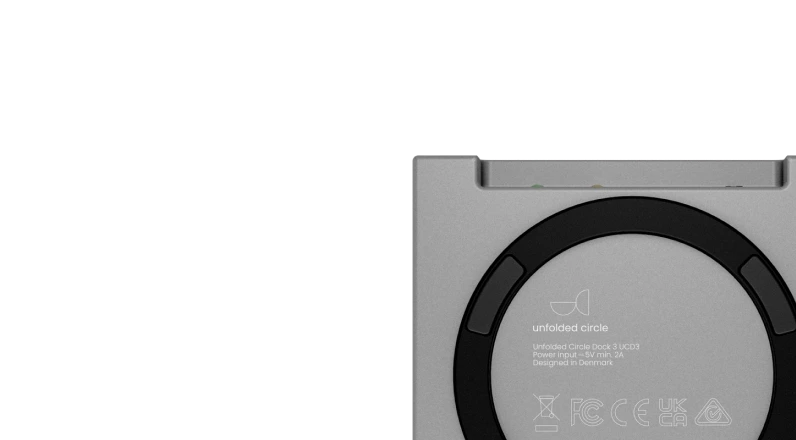

assembled in the EU
Designed in Denmark, engineered in Germany and Switzerland.
ESP Home compatible
You can upload a custom firmware via the USB-C port of Dock 3 for your specific use-case. ESP Home configuration is provided that makes it a perfect - even standalone - companion for home automation systems.4
ESP Home

technical specifications

system

SOC
ESP32 S3

connectivity

wifi
2.4GHz (802.11 b/g/n)
bluetooth
5
ethernet
100mbit
two 3.5mm jack ports
configurable IR output or RS232

power

USB-C power input
min. 2.0A 5V
power over ethernet
802.3af

infrared

built-in IR LED array
IR receiver for learning

size & weight

height
80mm
width
80mm
depth
25mm
weight
156g

box contents

Dock 3
USB-C to USB-C cable (2m)
IR blaster with 3.5mm jack connector (2m)
Quick start guide and safety information
We use only paper in our packaging as an effort to reduce the environmental impact.

in good company

Remote 3

next generation, easy to use companion for your smart home

Unfolded OS

local, open, privacy focused operating system
to unfold the devices’ potential
aboutdeveloperssupportprivacy policyterms of salereturn policywarrantylegalcookie preferences
Unfolded Circle ApS © 2024

All trademarks, logos and brand names are the property of their respective owners. All company, product and service names used in this website are for identification purposes only. Use of these names, trademarks and brands does not imply endorsement.

Content on this website is subject to change without notice. Certain features will be available through a free software update after product launch. Battery claims depend on actual usage and other factors. Actual results may vary. Battery has limited recharge cycles and at some point need to be replaced. Extended functionality might depend on cloud or 3rd party services.

privacy preferences
When you visit websites, they may store or retrieve data in your browser. This storage is often necessary for the basic functionality of the website. The storage may be used for marketing, analytics, and personalization of the site, such as storing your preferences. Privacy is important to us, so you have the option of disabling certain types of storage that may not be necessary for the basic functioning of the website. Blocking categories may impact your experience on the website. More Infomartion
These items are required to enable basic website functionality.
These items are used to deliver advertising that is more relevant to you and your interests. They may also be used to limit the number of times you see an advertisement and measure the effectiveness of advertising campaigns. Advertising networks usually place them with the website operator’s permission.
These items allow the website to remember choices you make (such as your user name, language, or the region you are in) and provide enhanced, more personal features. For example, a website may provide you with local weather reports or traffic news by storing data about your current location.
These items help the website operator understand how its website performs, how visitors interact with the site, and whether there may be technical issues. This storage type usually doesn’t collect information that identifies a visitor.
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
accept alldeny all
save preferences

1. Infrared code learning is currently compatible with popular standard protocols. Raw infrared signal learning will be supported later. Infrared codes can be sent from the following formats: learned code from the dock, Pronto. Additional formats will be supported later. Support for popular RS232 devices will be continuously added.
2. Certain button actions cannot be changed. Button configuration will be available via a free software update.
3. Voice assistant support for Home Assistant is available via ESP Home firmware. Dock voice capabilities will be available later in early 2025 via a free software update.
4. Due to restrictions in ESP Home, not all hardware features will be usable at the same time.
